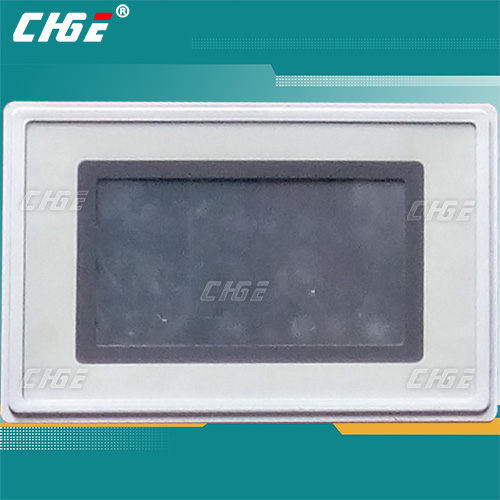

TEMI580溫濕度可程式控制器
該產品采用計算機技術、先進的PID控制方法對環境溫度、濕度進行測量和控制。
■顯示和控制界面清晰直觀，觸摸屏、輕觸式選擇菜單，簡單易用，性能穩定可靠。
■程序控制靈活，性?xún)r(jià)比高。
TEMI580溫濕度可程式控制器，TEMI580,溫濕度控制器,可程式溫濕度控制器一般多用于恒溫恒濕試驗箱，高低溫交變濕熱試驗箱，高溫高濕試驗箱，潮濕試驗箱，霉菌試驗箱，雙85試驗箱，恒溫恒濕槽等環境試驗設備中，觸摸式可編程，且顯示畫面簡潔明了，操作使用方便，容易理解。
技術指標：
1. 5吋彩色觸摸屏；
2. 兩種控制方式(定值/程式)
3. 傳感器類型：PT100傳感器(可選電子傳感器)
4.報警信號：4個DI外部故障報警；
5.溫度測量范圍：-90.00℃--200.00℃，（-90.00℃—300.00℃可定制）誤差±0.2℃；
6.濕度測量范圍：1.0%--100%RH，誤差±1%RH（此型號可增加濕度控制）；
7.界面語言類型：中文/英文；
8.具備漢字輸入功能；
9.多種信號組合繼電器輸出，信號可進行邏輯運算（NOT,AND,OR,NOR,XOR），簡稱PLC編程能力；
10. 通訊接口：（RS232/RS485，通訊最長距離1.2km[光纖可達30km])，可連接打印機打印溫濕度曲線監控?cái)?shù)據；
11.程式編輯：可編10組程式，每組程式最大可編12段；
規格：
外型尺寸：180×120×100(mm) (長×寬×深)
安裝開孔尺寸：170×110(mm) (長×寬)
TFT分辨率：480×272
TEMPERATURE .HUMIDITY PROGRAMMABLE CONTROLLER，TEMI580,溫濕度控制器,可程式溫濕度控制器
1. Safety Guide
1.1 Regarding the production Quality Assurance.
(1)The guaranteed period of the production quality assurance is one year after end user buy it and it will be free to fix defected product under regular usage described.
(2)It will be charged to fix defected product after warranty period . This charge will announced by our actual cost to be calculated during the fixing time.
(3)It will be charging even if within warranty period as following events.
(3.1)Defect by operator and user’s default. (forget password,production initialize )
(3.2)Natural disaster.(fire,water flow etc)
(3.3)Additional shift after 1st installed.
(3.4)Improperly repaired, or altered ,modified in anyway.
(3.5)Power failure in unstable power condition.
(4)Feel free to contact our sales office whenever it need to make A/S.
1.2 Environmental precautions for installation
(1)Be sure to operate the controller installed on a panel to prevent electric shock .
(2)To install the controller, do select a location where;
■No one may accidentally touch terminal .
■Mechanical vibrations are minimal.
■No corrosive gas is prevent.
■Temperature fluctuation is minimal.
■Temperature can be maintained. (50℃ below/10℃ cover).
■No direct heat radiation is present.
■No magnetic disturbances are caused.
■No water is splashed.
■No flammable materials are ground.
■No wind blows.(Prevent dust with salt)
■No ultraviolet rays are present.
■If the equipment is used in a manner not specified by the manufacture,the protection provided by the equipment may be impaired.
■A switch or circuit-breaker acting as the disconnect device shall be included in the application or the building installation.
1.3 Precautions of Controller Mounting
■Keep the input circuit wiring as far as possible away from power and ground circuit.
■Keep the controllers in 10℃～50℃/20%～90%RH,Warming up needed to use controller when temperature is below 10℃ in advance.
■Do not mount front panel facing to downward.
■To prevent electric shock ,be sure to turn off and the source circuit breaker before wiring .
■The power consumptions are 100-240VAC,50/60Hz,15VAmax and operate without power switching in advance.
■No work in wet hands(it caused electric shock)
|
